Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the highest quality and rectangular neodymium magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the highest quality and super strong disc magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the rectangular pot magnet with double counter bore
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the super strong pot magnet with internal thread for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the rare earth pot magnet with screwed bush for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the super strong pot magnet with external thread for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the super strong pot magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the super strong pot magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the high quality Samarium Cobalt block magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the high quality arc SmCo magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the high quality and custom size ring magnet for you.
Read More
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the high quality Neodymium magnetic bar with male thread for you.
Read More
If you have questions about custom magnets,please leave us a message,we will reply you as soon as we can!
Contact Us
MOQ :
100origin :
ChinaColor :
Sliver Gold Black
The size,shape and grade of magnet can be produced according to your request.
Welcome to contact us for futher informations.
Available dimensions
We have professional team, advanced equipment and well-trained QC staff to develop different sizes and shapes magnets as customer requirements which can be ensured with very high quality and precise tolerance.
The magnets can be round shape,block shape,or others custom shape.

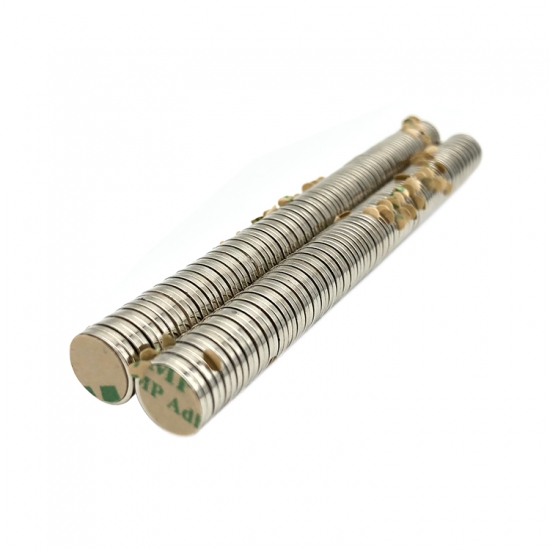

3M adhesive and Chinese adhesive are available. We will produce it according to your requirements.

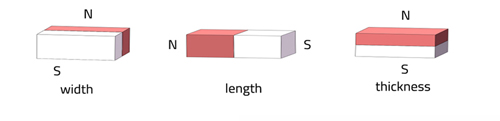

The direction of magnetization
Normally the direction of magnetization is through thickness or axial magnetized.
Remanence Br
mT(KG)
Coercivity bHc
KA/m(KOe)
Intrinsic Coercivity iHc
KA/m(KOe)
Maximium Energy
Product
(BH)max
KJ/m3 (MGOe)
Max
Working
Temp.
(℃)
Magnetic Properties Of Sintered NdFeB Magnet
Magnetic properties of N series
NO.
Grade
1
N35
1170-1220(11.7-12.2)
≥868（≥10.9）
≥955（≥12）
263-287(33-36)
80℃
2
N38
1220-1250(12.2_12.5)
≥899（≥11.3）
≥955（≥12）
287-310(36-39)
80℃
3
N40
1250-1280(12.5-12.8)
≥907（≥11.4）
≥955（≥12）
302-326(38-41)
80℃
4
N42
1280-1320(12.8-13.2)
≥915（≥11.5）
≥955（≥12）
318-342(40-43)
80℃
5
N45
1320-1380(13.2-13.8)
≥923（≥11.6）
≥955（≥12）
342-366(43-46)
80℃
6
N48
1380-1420(13.8-14.2)
≥923（≥11.6）
≥955（≥12）
366-390(46-49)
80℃
7
N50
1400-1450(14.0-14.5)
≥796（≥10.0）
≥876（≥11）
382-406(48-51)
60℃
8
N52
1430-1480(14.3-14.8)
≥796（≥10.0）
≥876（≥11）
398-422(50-53)
60℃
9
N55
1470-1520(14.7-15.2)
≥796（≥10.0）
≥876（≥11）
414-438(52-56)
60℃
Magnetic properties of M series
1
N35M
1170-1220(11.7-12.2)
≥868（≥10.9）
≥1114（≥14）
263-287(33-36)
100℃
2
N38M
1220-1250(12.2-12.5)
≥899（≥11.3）
≥1114（≥14）
287-310(36-39)
100℃
3
N40M
1250-1280(12.5-12.8)
≥923（≥11.6）
≥1114（≥14）
302-326(38-40)
100℃
4
N42M
1280-1320(12.8-13.2)
≥955（≥12.0）
≥1114（≥14）
318-342(40-43)
100℃
5
N45M
1320-1380(13.2-13.8)
≥955（≥12.5）
≥1114（≥14）
342-366(43-46)
100℃
6
N48M
1360-1430(13.6-14.3)
≥1027（≥12.9）
≥1114（≥14）
366-390(46-49)
100℃
7
N50M
1400-1450(14.0-14.5)
≥1033（≥13.0）
≥1114（≥14）
382-406(48-51)
100℃
8
N52M
1430-1480(14.3-14.8)
≥1033（≥13.0）
≥1114（≥14）
398-414(50-52)
100℃
Magnetic properties of H series
1
N33H
1130-1170(11.3-11.7)
≥844（≥10.6）
≥1353（≥17）
263-287(31-34）
120℃
2
N35H
1170-1220(11.7-12.2)
≥868（≥10.9）
≥1353（≥17）
263-287(33-36）
120℃
3
N38H
1220-1250(12.2-12.5)
≥899（≥11.3）
≥1353（≥17）
287-310(36-39)
120℃
4
N40H
1250-1280(12.5-12.8)
≥923（≥11.6）
≥1353（≥17）
302-326(38-41)
120℃
Large Size Neodymium Magnet
1.Size: Customized 2.Grade: N35~N55 (M,H,SH,UH,EH,AH) 3.Coating: Zn,NiCuNi,Epoxy,Gold and etc. 4.Magnetized: Thickness,Axial,Diametrical,Multipoles 5.Max Operating Temperature: 60~220 degree celsius
Neodymium Magnet Bar
1.Size: Customized 2.Grade: N35~N55 (M,H,SH,UH,EH,AH) 3.Coating: Zn,NiCuNi,Epoxy,Gold and etc. 4.Magnetized: Thickness,Width,Length or Multipoles 5.Max Operating Temperature: 60~220 degree celsius
Customized Ring Neodymium Magnet
1.Size: Customized 2.Grade: N35~N55 (M,H,SH,UH,EH,AH) 3.Coating: Zn,NiCuNi,Epoxy,Gold 4.Magnetized: Axial or Diametrical 5.Max Operating Temperature: 60~220 degree celsius
High Performance Arc Neodymium Magnet
1.Size: Customized 2.Grade: N35~N55 (M,H,SH,UH,EH,AH) 3.Coating: Zn,NiCuNi,Epoxy,Gold 4.Magnetized: Diametrical direction 5.Max Operating Temperature: 60~220 degree celsius
Countersunk Neodymium Magnet
1.Size: Customized 2.Grade: N35~N55 (M,H,SH,UH,EH,AH) 3.Coating: Zn,NiCuNi,Epoxy,Gold 4.Magnetized: Axial 5.Max Operating Temperature: 60~220 degree celsius 6.Central hole with M3,M4,M5,M6 screw and etc.
Rare Earth Magnet Strong Arc Neodymium Magnet
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the highest quality arc magnet for the loudspeaker.
N52 High Performance Magnet Arc Neodymium Magnet Motor Magnet
Xiamen Kingsmagnet has been in magnet industry for 10 more years. We could provide the highest quality arc magnet for motor.
N42 Super Strong Disc Ndfeb Neodymium Magnet For Motor
We are Kings magnet company. We are committed to producing high quality products
N52 High Performance Disc Ndfeb Neodymium Magnet
We are Xiamen Kings Magnet Company Our company is a manufacturer of high-quality products.
